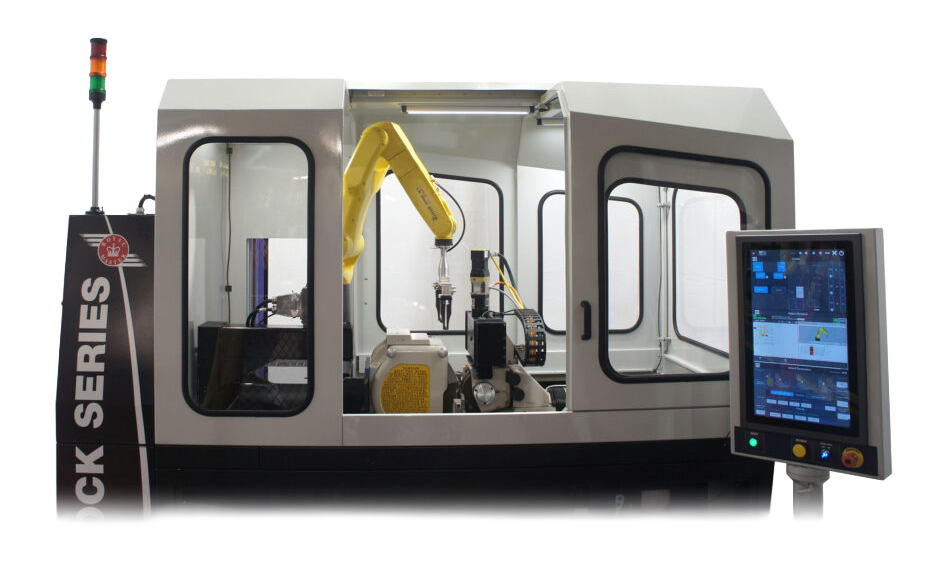

HI-ACCURACY WITH CNC DRESSING
12x4
Hi-Accuracy
With 7 Axis CNC Rotary Diamond Disk Dressing
.000,01 Diameter compensations, single-digit micron roundness. Production enviroment-proven.
The 12×4 Hi-Accuracy is where customers focus when the tightest of tolerances and the most unique geometries of parts are presented. Using a .0009mm (9 nanometer) glass scale on the diameter positioning axis, the tightest of tolerances are need to be held. All of this accuracy is built on top of an 8” thick Strarrett granite surface plate making the machine highly capable for smaller production runs or high volume production when tenths of a second count! The upgraded interface and advanced HMI makes operator interaction seamless.
.000,009mm
9 NANOMETER GLASS SCALE — .000010” DIAMETER COMPENSATIONS MADE WITH THE TOUCH OF A BUTTON
25″
THREE-PANEL TOUCHSCREEN WITH GAUGE FEEDBACK AND DATA COLLECTION FOR THE IIOT
7 Axis of CNC
7 AXIS OF CNC CONTROL ALLOWS FOR FULL CONTROL OVER THE DRESSING ON THE GRINDING AND REGULATING WHEELS
9000 sf/m
GRINDING WHEEL SPEEDS UP TO 9000 SF/M FOR ALLYOUR EXOTIC, SUABRASIVE WHEELS AND FASTER MATERIAL REMOVAL
• ORIGINAL SERIES
THE STORY BEHIND THE PART
Every part we grind at the show has a story behind it. The 12×4 Hi-Accuracy with CNC Rotary Diamond Disk Dressing is grinding a hydraulic valve from a Ford 830A backhoe — three diameters, a taper, and a shoulder, loaded by pick and place and delivered straight to a gauging station. Watch the full story behind the part.
THE SOLUTION FOR YOUR CHALLENGE
TIGHT TOLERANCES NEED A MACHINE ENGINEERED TO HOLD THEM
NOT ONE MODIFIED TO TRY
3-Axis CNC dressing on grinding wheel
CNC dressing whether stationary or rotary tooled is critical for many part geometries. Our system meets these challenges with 0.1 micron resolution on each axis.
7 total axis
7 axis of CNC control gives you the tools to grind virtually any part of any geometry out of any material.
You have questions?
We have the answers. With a full complement of not only customer application engineers, but mechanical, electrical, programming and project engineers. All disciplines are available to answer your questions.
TECHNICAL SPECS
BUILT TO A DIFFERENT STANDARD
WHEEL SIZE
12″ x 4″
12″ diameter grinding wheel, 6″ diameter regulating wheel
COLLABORATIVE ROBOT LOADING
Multiple Automation Options
At IMTS will be showcasing a dual-head pick and place system at the end of the grind the part will discharge to a guaging station.
GUAGING AND PROCESS MONITORING
Diverse Guaging Options
In high production environments, this machine can monitor your process and using AI, make reccomendations for process improvements. This includes dress, guaging, and compensation frequencies.
SUPER ABRASIVE READY
Variable Frequency Drive
VFD on grinding wheel spindle for super abrasives or maintaining constant surface footage when grinding
GRIND CAPACITY
Infeed and Thrufeed
Infeed and thrufeed grind capability
DIAMETER POSITIONING
0.000,010″
Thrufeed grind with fine resolution positioning to 0.000,010″ of an inch or 1/4-micron increments
WHAT SETS IT APART
THE HIGHLIGHTS
Data Integration — On-Board or Connected to Facility Systems
On-board data collection standard. Integrates with in-house data management and SPC platforms.
9 Nanometer Glass Scale — 1/4 Micron Diameter Compensations
Closed-loop positioning at the sub-micron level. Quarter-micron compensation steps are routine, not exceptional.
Single-Digit Micron Roundness — Achievable in Production
Not a lab result. This is production performance, repeatable across shift and volume.
8" Thick Starrett Granite Base — Lapped to .0002" Flatness
Thermal stability and surface precision are engineered into the base. The machine holds what it’s set to hold.
24" Three-Panel Touchscreen — Gauge Feedback + Data Collection
All controls, compensation data, and gauging feedback in one interface. Built for high-mix, high-precision environments.
Four Dressing Options Including Two CNC Options
Standard template, automatic template, single-point CNC, and rotary disk CNC. Profile flexibility for any application.
Dual-Head Pick and Place — Load, Grind, Gauge in Sequence
First jaw places the part between the wheels. Second jaw pulls the finished part and delivers it directly to the gauging station. No manual handling between grind and inspection.
